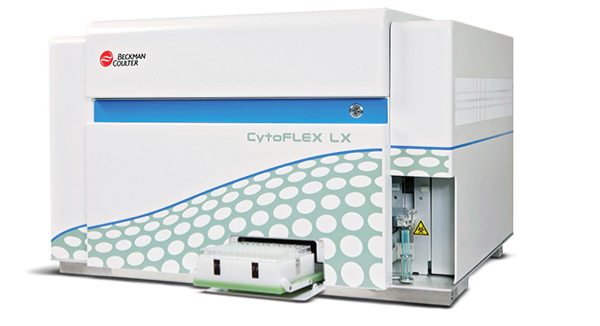

CytoFLEX LX U3-V5-B3-Y5-R3-I2 Flow Cytometer (21 Detectors, 6 Lasers)
Product No:C40324
CytoFLEX LX U3-V5-B3-Y5-R3-I2 Flow Cytometer has 6 active lasers (355 nm, 405 nm, 488 nm, 561 nm, 638 nm, 808 nm) and 21 channels for fluorescence detection. This instrument can be upgraded with a maximum of 3 UV, 5 Violet, 3 Blue, 5 Yellow Green, 3 Red and 2 Infrared channels. It includes 21 repositionable bandpass filters, 405/10, 405/30, 450/45 (2), 525/40 (3), 585/42, 610/20 (3), 660/10 (2), 675/30 (2), 690/50, 710/50, 712/25, 763/43 (3), 840/20, 885/40. The complete system is supplied with computer work station with CytExpert Acquisition software, sheath and waste containers with harness.
Resources + Tools
Product Specifications
| Product Category (BU) | Flow Cytometry Analyzer |
| Software | CytExpert software |
| Regulatory Status | RUO |
| Resolution | <300 nm particles (488 nm side scatter), <80 nm polystyrene particles (405 nm side scatter), rCV 3% |
| Performance | <30 MESF for FITC, <10 MESF for PE |
| Number of Parameters | 21 fluorescence detectors |
| Optical Filters | 405/10, 405/30, 450/45 (2), 525/40 (3), 585/42, 610/20 (3), 660/10 (2), 675/30 (2), 690/50, 710/50, 712/25, 763/43 (3), 840/20, 885/40 |
| Detectors | Photodiodes |
| Flow Cell | Patent-pending, alignment-free integrated optics quartz flow cell (420 μm x 180 μm ID) design with >1.3 numerical aperture |
| Signal Processing | Digital system with 7-decade display |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Weight | 79 kg(174.2 lb) |
| Width | 60.5 cm(23.8 in) |
| Depth | 73.3 cm(28.9 in) |
| Height | 45.1 cm(17.8 in) |
